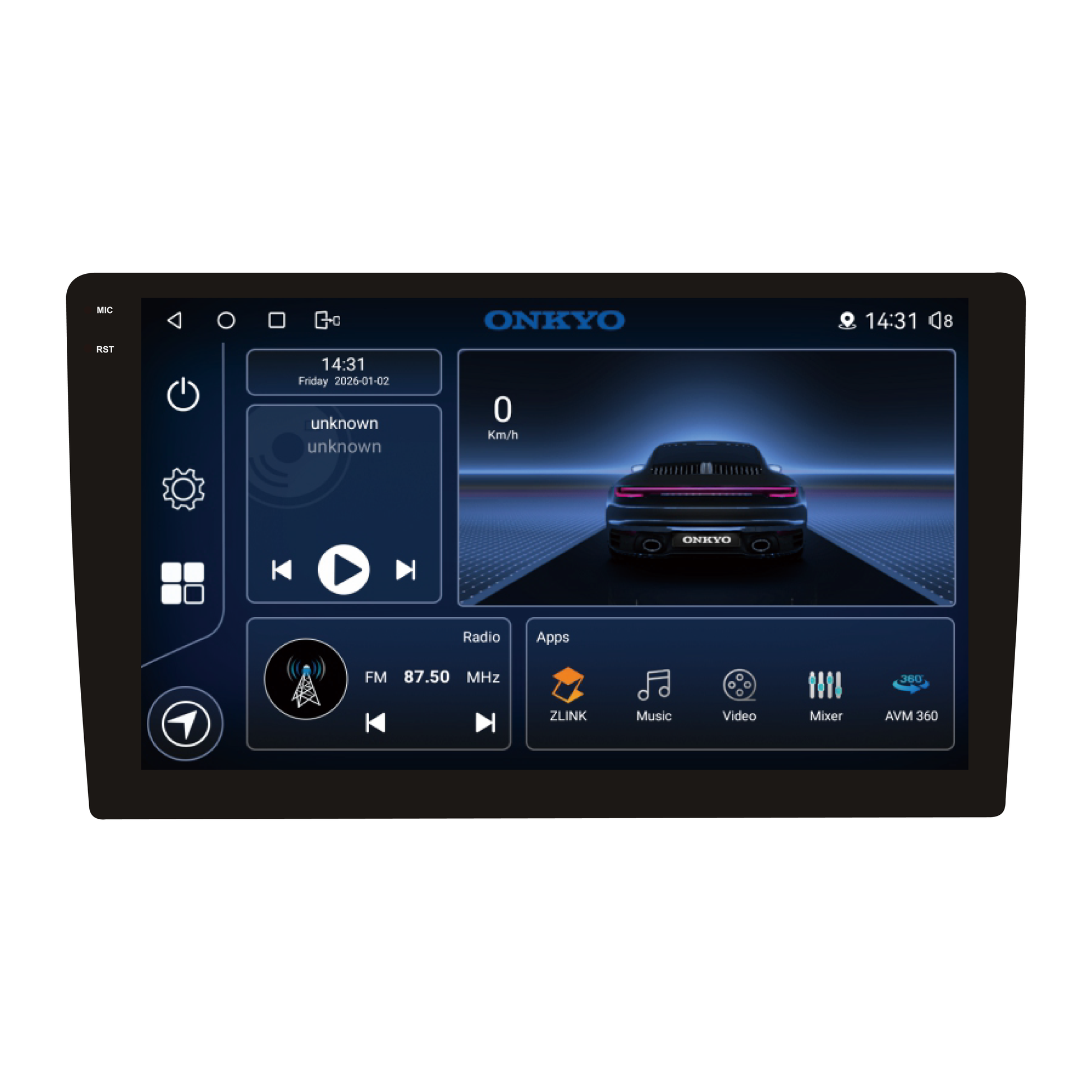

ONKYO X-QD1760 PRO

Description:

ANDROID MULTIMEDIA PLAYER

Specification:

General:

• Operation Voltage: 14.4V ( 10.5 - 16V )

• Operating Temperature: -10℃ ~ +60℃
• Storage Temperature: -20°C ~ +70°C
• Unit Dimensions ( W x H x D ): 9", 228.2 x 130.4 x 43.6mm / 10", 252.1 x 146.7 x 42.9mm
• Net Weight: 9", 0.8kg / 10", 0.9g
• Gross Weight: 9", 1.6kg / 10", 1.7kg

TFT Screen ltem:

• Size: 9.0" / 10"
• Display Resolution: 1360 x 800 or 1280 x 800
• Contrast Ratio: 500
• Brightness: 500nit

Bluetooth:

• Communication System: BT5.0 + EDR
• Output: BT Standard Power 9 dBm
• Max Communication Range: 15m
• Frequency Band: 2.4GHz

Audio:

• Max Power: 4 x 50W
• Front Output ( V ): 4V / 10KΩ
• Pre-output Impedance: ≤600Ω
• Speakers Impedance: 4 - 8Ω

Radio:

• FM Frequency Range: 87.5 - 108.0MHZ
• MW Frequency Range: 522 - 1620KHZ


USB Interface:

• USB: Readable / Chargeable ( 5 ± 0.25V/1A )

WI-FI:

• Standard: 802.11 a/b/g/n/AC
• Spectral Band: 2.4GHz / 5GHz

System:

• Operating System: OY14.0
• DDR + Flash: 4+64GB | 6+128GB | 8+256GB


Video:

• External Video Input System: NTSC / PAL / SECAM
• External Video Input: 1VP-P / 75Ω

Video Format:

• Codec Support: H264 / H265 / MP4 / AVI / MKV
• Video Capture Support: 2160P 30FPS / 1080P 120FPS / 720P 240FPS


Audio Format:

• DSD / MP3 / APE / AAC / FLAC
