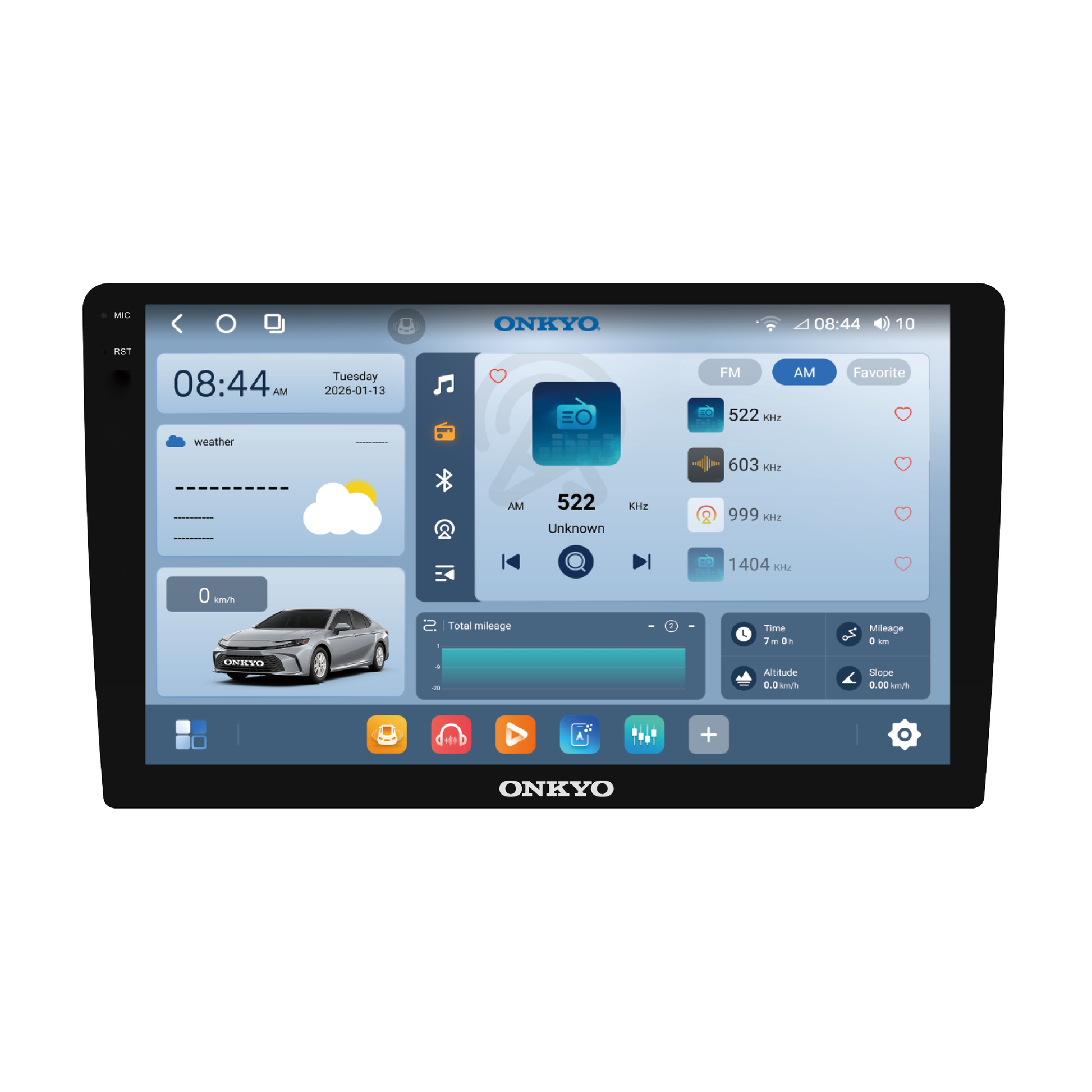

ONKYO X-QD1960

Description:

ANDROID MULTIMEDIA PLAYER

Specification:

General:

• Operation Voltage: 9 ~ 16V

• Operating Temperature: -40℃ ~ +85℃

TFT Screen ltem:

X-QD1960 PRO-AL40

• Size: 15.6"
• Display Resolution: 1920 x 1080
• Contrast Ratio: 500
• Brightness: 500nit

X-QD1960-A9Z / AX

• Size: 9" / 10"
• Display Resolution: 2000 x 1920 or  1280 x 720

• Contrast Ratio: 500
• Brightness: 500nit

Bluetooth:

• Communication System: BT5.0+GOT + EDR
• Output: BT Standard Power 9 dBm
• Max Communication Range: 15m
• Frequency Band: 2.4GHz

Audio:

• Max Power: 4 x 50W
• Front Output ( V ): 4V / 10KΩ
• Pre-output Impedance: ≤600Ω
• Speakers Impedance: 4 - 8Ω

Radio:

• FM Frequency Range: 87.5 - 108.0MHZ
• MW Frequency Range: 522 - 1620KHZ


USB Interface:

• USB: Readable / Chargeable ( 5 ± 0.25V/1A )

WI-FI:

• Standard: 802.11 a/b/g/n/AC
• Spectral Band: 2.4GHz / 5GHz

System:

• Operating System: OY13.0
• DDR + FLASH: 6+128GB | 8+256GB | 12+512GB

Video:

• External Video Input System: NTSC / PAL / SECAM
• External Video Input: 1VP-P / 75Ω

Video Format:

• Codec Support: H264 / H265 / MP4 / AVI / MKV / FLV / VP8 / VP9
• Video Capture Support: 2160P 30FPS / 1080P 120FPS / 720P 240FPS

Audio Format:

• DSD / MP3 / MP4 / APE / AAC / FLAC / AMR / WAV
