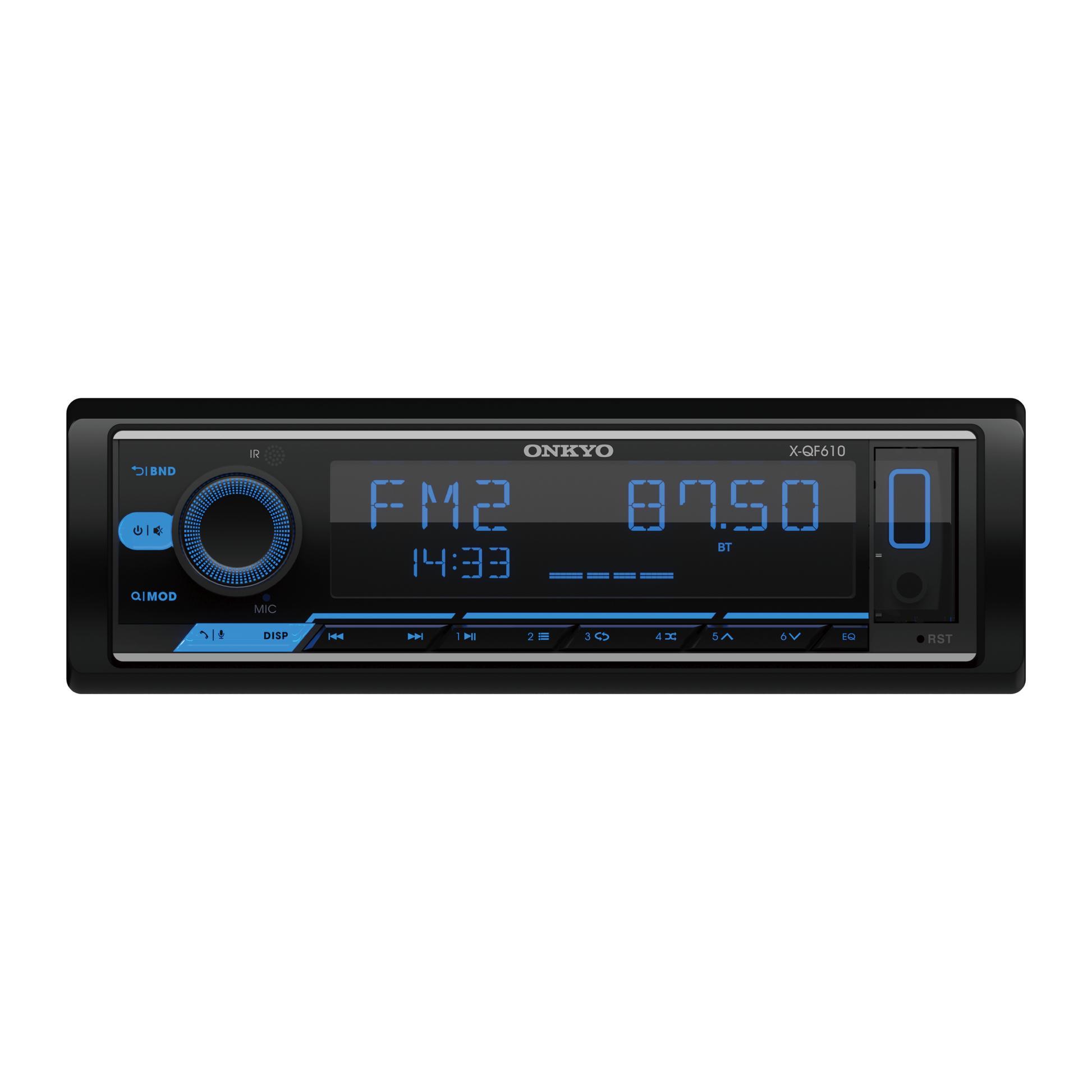

ONKYO X-QF610

Description:

DIGITAL MEDIA RECEIVER

Specification:

General Section:

• Operating Voltage: 14.4V DC ( 10.8 ~ 15.1V )
• Maximum Current Consumption: 10A
• Standby Current: ＜ 10mA
• Operation Temperature: -20℃ ~ 60℃
• Dimensions ( W x D x H ): 188 x 125 x 58 mm
• Weight: 0.64kg

Audio Section:

• Maximum Power Output: 4 x 50 W ( 4Ω )
• Continuous Output Power: 4 x 22 W ( 4Ω )
• Load Impedance: 4Ω

Pre-output Section:

• Pre-output Channel: 4 Channel
• Pre-output Maximum Level: 2V
• Pre-output Impedance: ＜ 200Ω

Bluetooth:

• Version: Bluetooth 5.1
• Max Communication Range: 10M
• Frequency Band: 2.4G Hz
• Profile Support: HFP / A2DP / AVFRCP

Radio Section:

• FM Frequency Range: 87.5 ~ 107.9MHz
• AM Frequency Range: 522 ~ 1620k Hz | 531 ~ 1710k Hz


USB Section:

• USB Standard: USB 1.1 | USB 2.0 full speed
• Maximum Supply Current: DC 5V 1A
• Audio Format: MP3 / WMA / WAV / FLAC
• USB Format: FAT32 | exFAT
