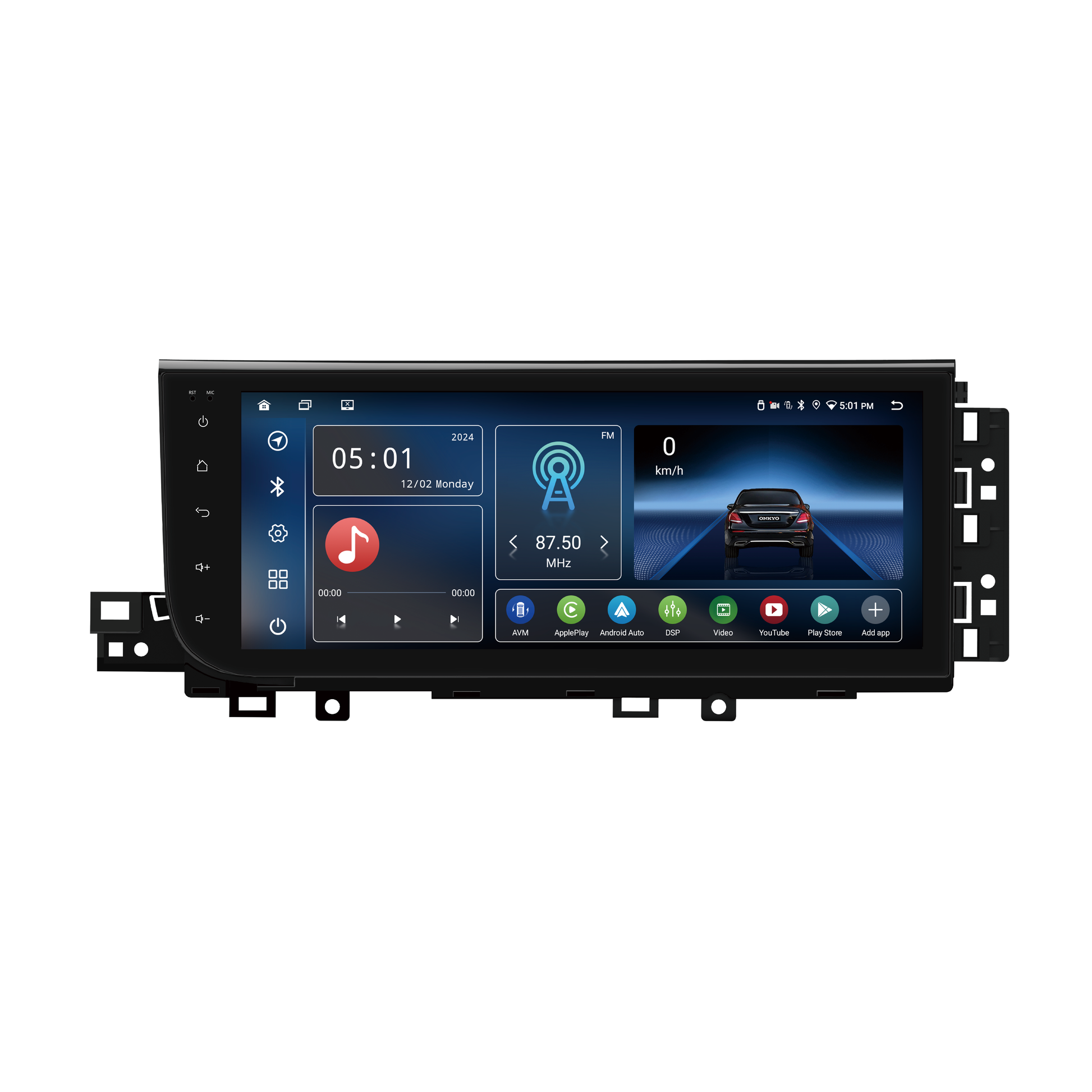

ONKYO X-QD1530T-CR

Description:

12.3" 8-CORE HIFI ANDROID MULTIMEDIA PLAYER

Specification:

General:

• Operation Voltage: 14.4V ( 10.5 - 16V )
• Installation Size: Thickness: 42mm
• Operating Temperature: -10℃ ~ +60℃
• Storage Temperature: -20°C ~ +70°C
• Net Weight: 1.85kg

System:

• Operating System: OY13.0
• DDR: 2GB / 4GB
• Flash: 32GB ( Optional: 64GB )

Radio:

• FM Frequency Range: 87.5 - 108.0MHZ

Bluetooth:

• Communication System: BT5.0 + EDR
• Output: BT Standard Power 2 Class
• Max Communication Range: 5m
• Frequency Band: 2.4GHz

USB Interface:

• USB: Readable / Chargeable ( 5 ± 0.25V/1A )

Audio:

• Max Power: 4 x 50W
• Front Output ( V ): 2V / 10KΩ
• Pre-output Impedance: ≤600Ω
• Speakers Impedance: 4 - 8Ω

TFT Screen ltem:

• Size: 12.3"
• Display Resolution: 1920 x 720
• Contrast Ratio: 800
• Brightness: 600nit

Video:

• External Video Input System: NTSC / PAL / SECAM
• External Video Input: 1VP-P / 75Ω

Video Format:

• H264 / MP4 / AVI / MKV / FLV

Audio Format:

• MP3 / APE / AAC / FLAC
