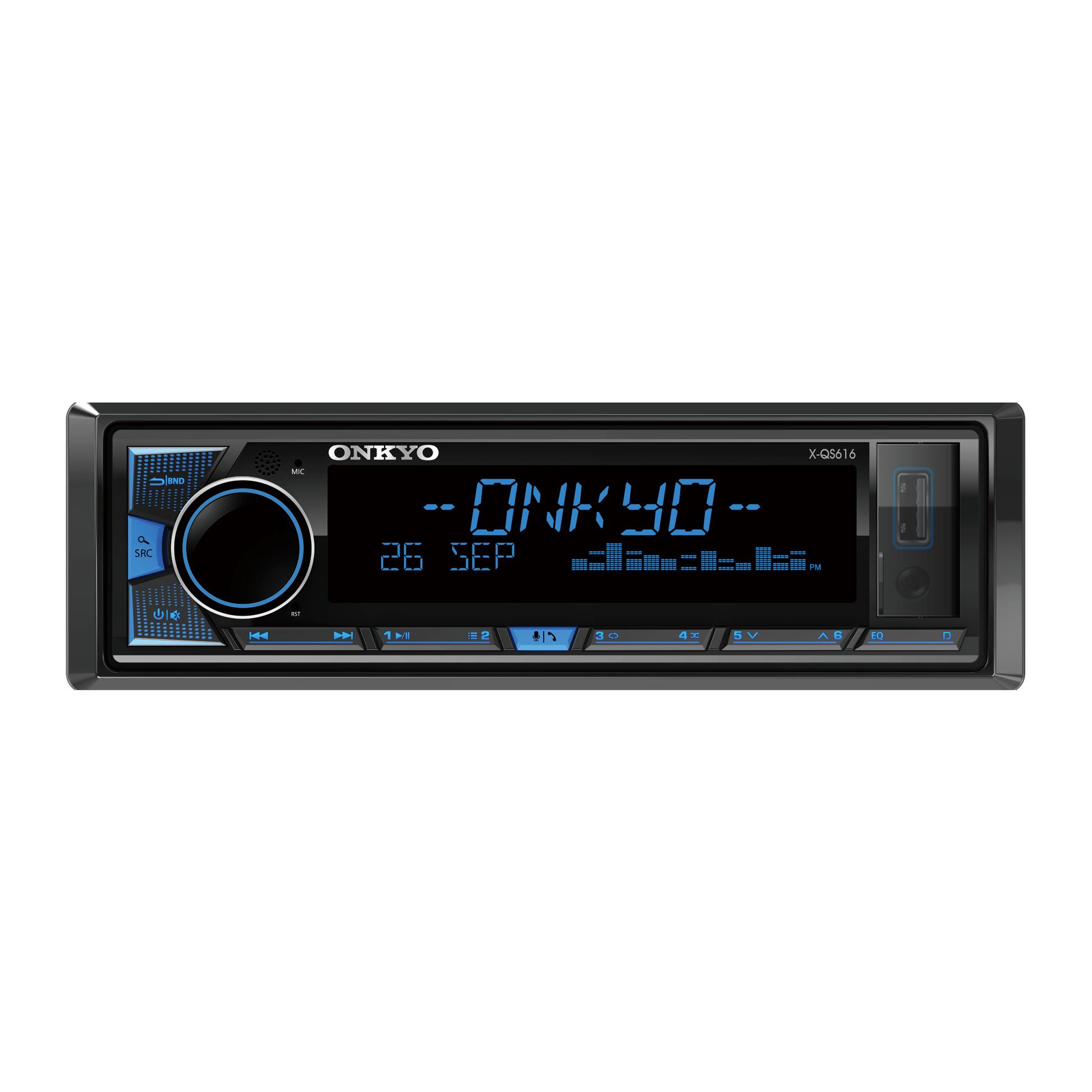

ONKYO X-QS616

Description:

DIGITAL MEDIA RECEIVER

Specification:

General:

• Working Power Supply Voltage: 12V ( 9.6 to 15V Allowed )
• Fuse: 15A
• Maximum Power Output: 4 x 50 W ( 4Ω )
• Rated Output Power: 4 x 25 W ( 4Ω )
• Acoustic Impedance: 4Ω
• Frequency Range: 20 Hz - 20k Hz
• Display Angle: Vertically + 30°, Horizontally + 15°
• Audio Input ( AUX, Stereo ): One ( Front Panel, 3.5mm )
• Linear Output ( RCA ): 6-Channel ( 3 Pairs )
• RCA Output Level: Up to 3.5V
• Maximum Current Consumption: 15A
• Mounting Dimensions ( W x D x H ): 182 x 108 x 53 mm
• Temperature ( Working ): 0℃ to + 60℃
• Humidity ( Working ): 45% + 80%

Audio Input AUX IN:

• Audio Input Level: 500mV ( 2V Max )
• Connector: Mini Jack 3.5mm

USB:

• Supported Media: USB
• Supported Formats: FLAC ( 16bit )M, WAY, APE, AAC, MP3
• File System: FAT 16, FAT WE32
• USB / SD Card: USB 2.0, USB 3.0, up to 256GB
• ID3 Tag Support: English

Bluetooth:

• Version: 4.2
• Introduction: A2DP, AVRCP, HFP
• Frequency: 2.4G Hz

Radio AM / FM:

• Radio Station Tuning Memory: 12AM / 18FM
• FM Reception Frequency Range: 87.5 - 108.0MHz
• AM Reception Frequency Range: 522 - 1620KHz
• Antenna Impedance: 75Ω

Equalizer:

• 20 Frequency Band, 32 - 20000Hz Gain -9 dB to +9 dB, Gain 1 dB

Filter L.P.F. ( Subwoofer ):

• 80 / 120 / 160Hz Gain 0 dB to 12 dB, Gain 1 dB
